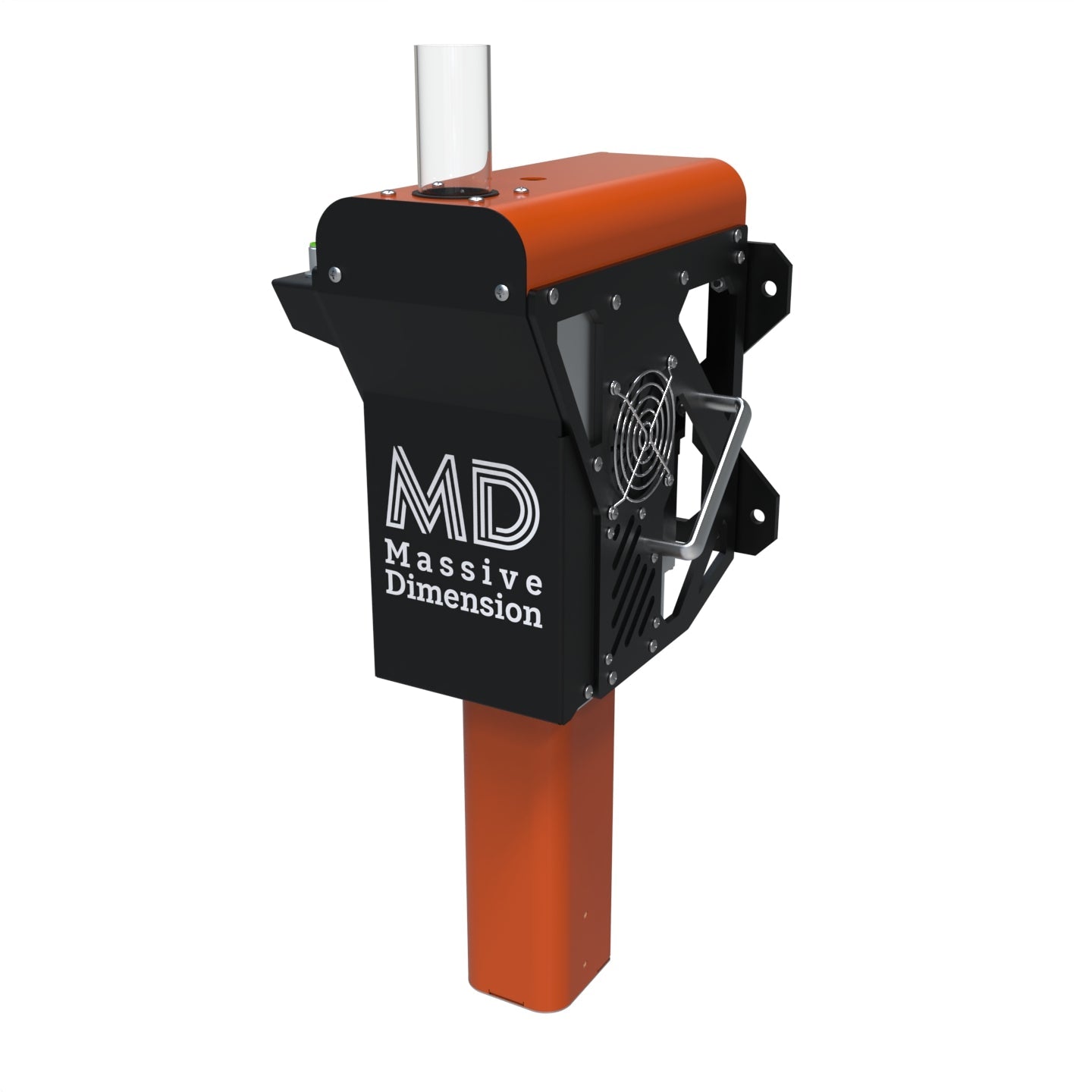

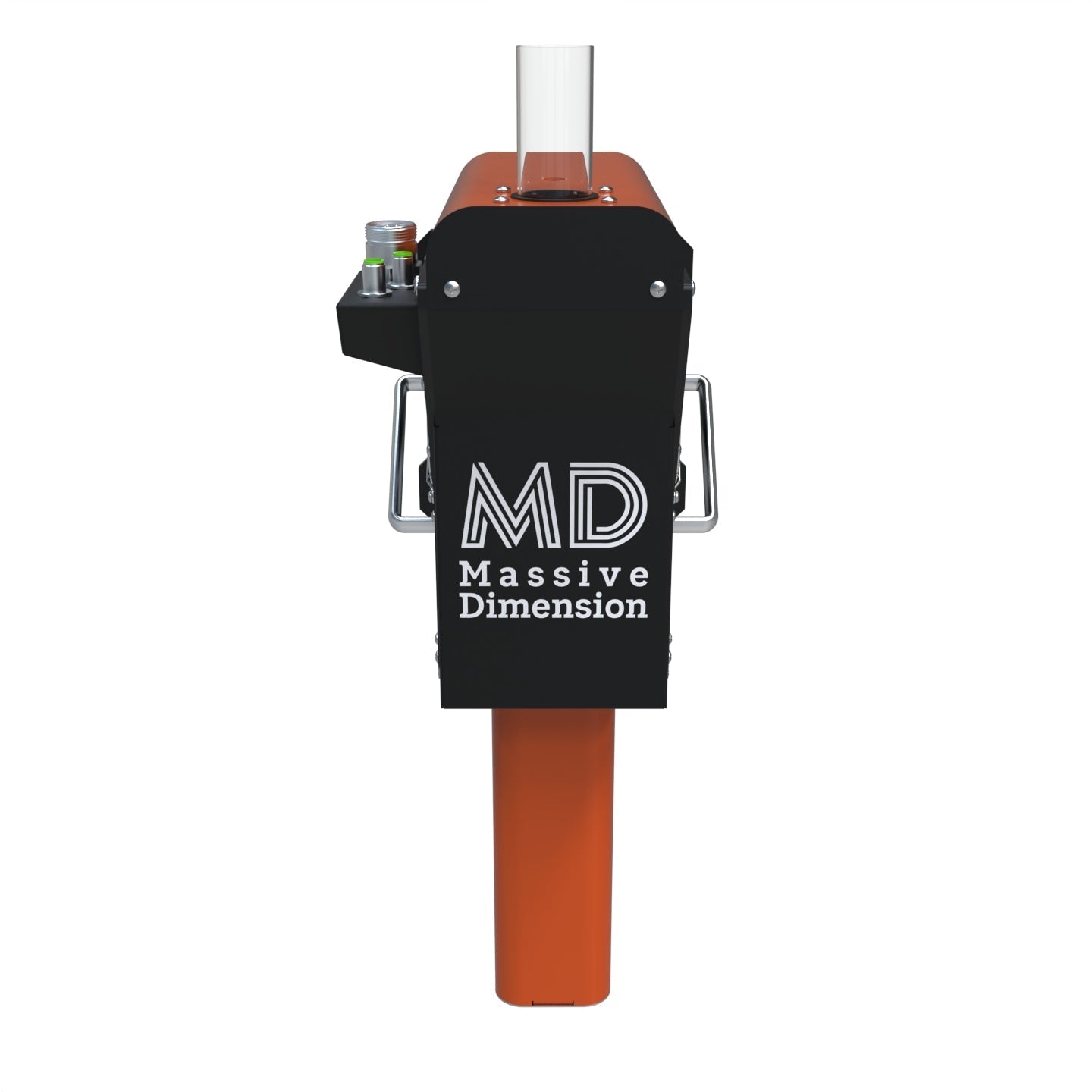

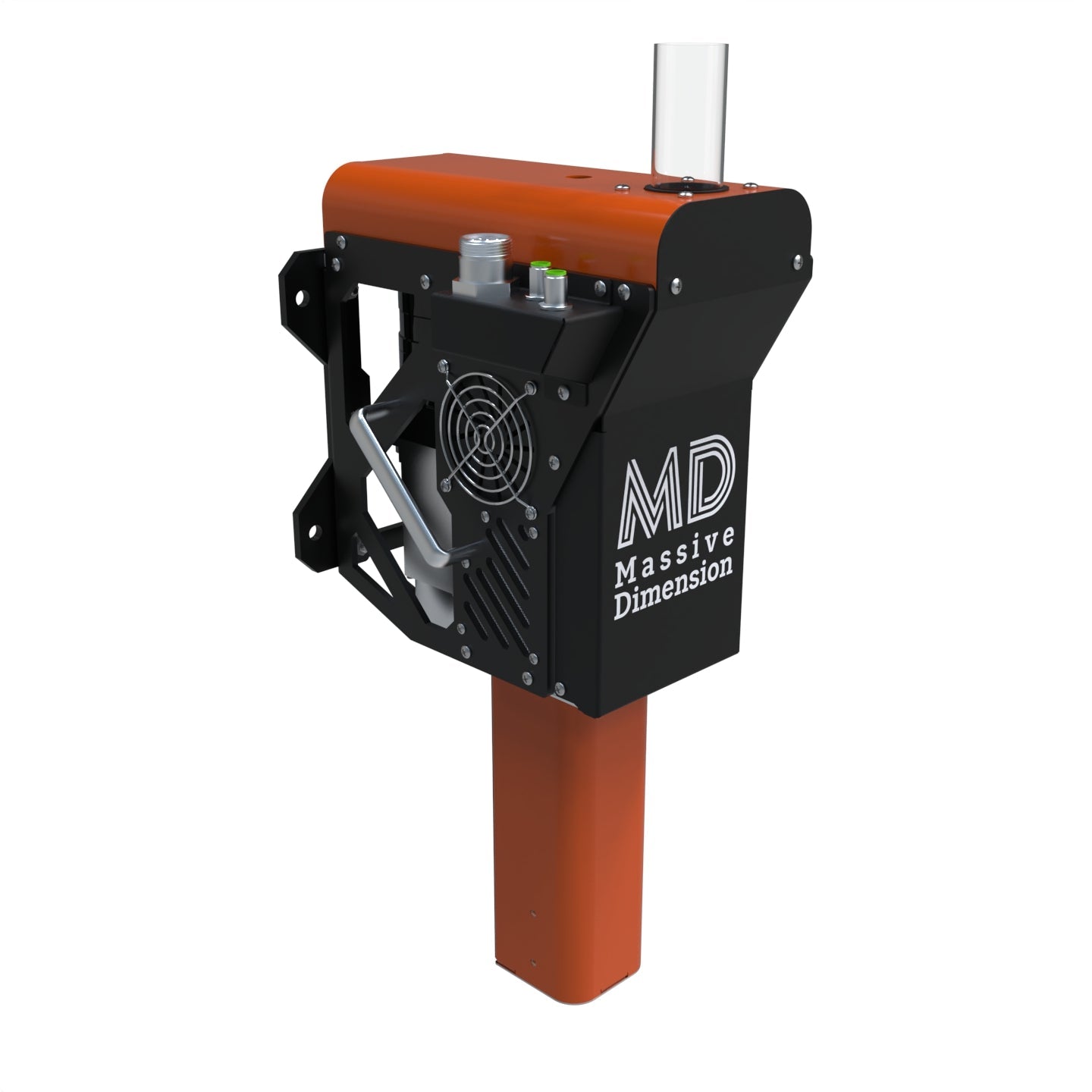

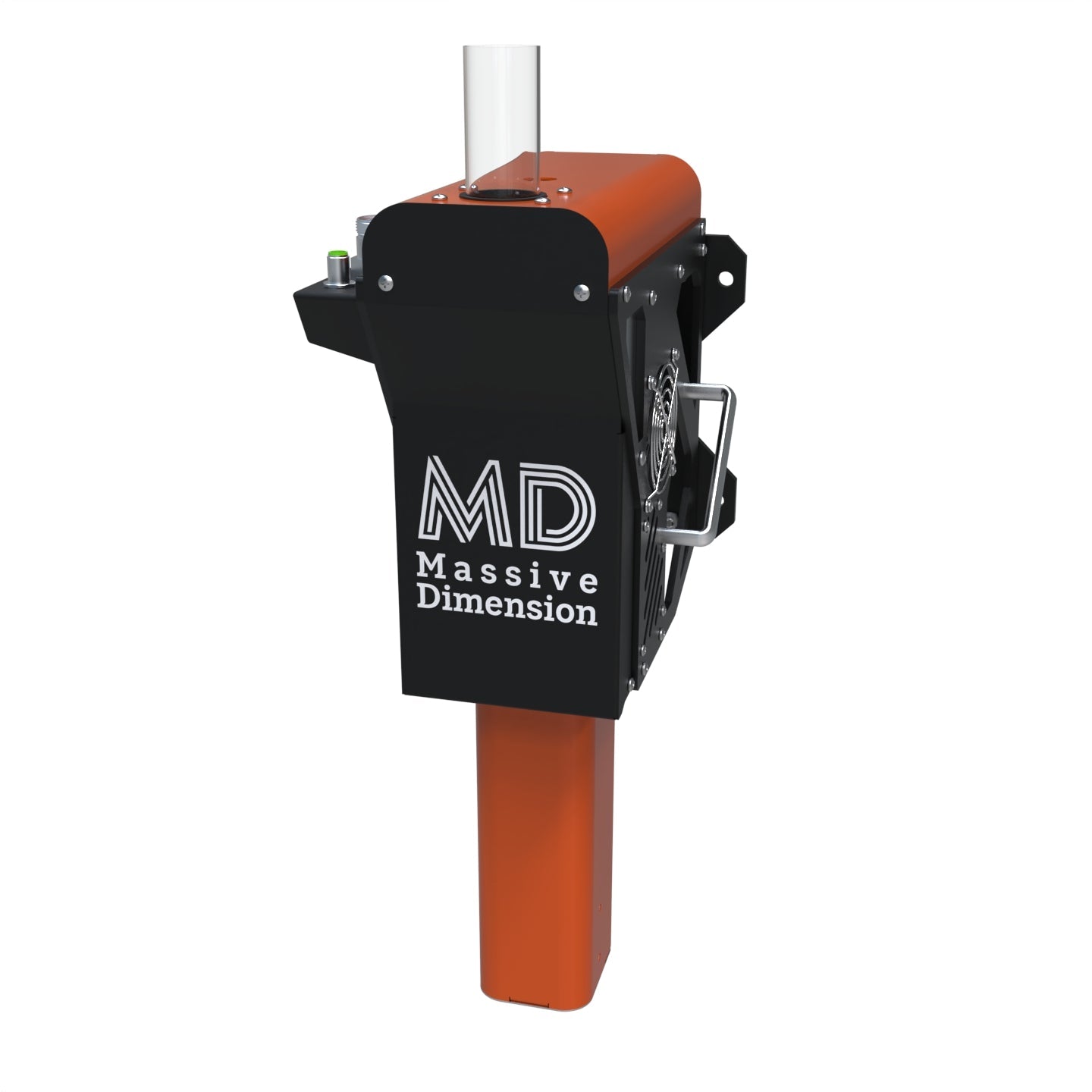

This industrial Series MDPE10 has an upgraded barrel and screw that are treated with a nitrided process to bring superior hardness and wear resistance to the system. This system is designed for high volume production, extrusion of highly filled polymers, and abrasive additives.
The MDPE10 is the newest direct print extruder from Massive Dimension. This MDPE10 extruder outputs 10lbs per hour, five times more material than the MDPH2 extruder. This higher output allows for shorter print times and wider wall thicknesses in a single pass. The MDPE10 has three more heat zones, for a total of 4 zones, and a 24:1 L/D ratio hot-swappable extruder screws. To meet the demands of the polymer processing characteristics, 5 screws have been designed for the job. The zones and longer screw melt, pressurize, and output polymer more consistently during large-format 3D printing.
Click here to download the MDPE10 product overview.
- Temperature Max: 450°C - 1000 Watt Total Heating Power
- 4 Heat Zones
- Power Input: 200~255 VAC @ 50/60 Hz ±5%
- High Performance, High Pressure Screw
- High Power Motor
12.7 pound per hour output with LX175 PLA
- Wide Range of Materials - ABS, PLA, HIPS, PETG, more materials being tested
- Material Input Size - Up to 1/8in diameter, with an angle of repose less than 30°
- Low Weight ~ 30.5 lbs (13.84kg)
MDPE10 STEP Model - Zipped File
- MDPE10 Operations Manual
- MDPE10 Public Dimensions
- MDPE10 Wiring Diagram - Connector Version (Previous Style)
- MDPE10 Wiring Diagram - Direct Wire Version (New Style)
- MDPE10 - Tempco External Control Cabinet Wiring Diagram
- MDPE10 Included Motor and Controls
What is in the box:
- MDPE10 Pellet Head
- 2 Nozzles - Predrilled to 1.5mm
- 10ft Power and Control Wire
- Motor Power and Control Wire
- Motor Driver
- Temperature Controller Options:
- DIY Option: QTY 4 - 1/16 DIN panel mount single loop PID Temperature controllers and 35mm DIN rail mounted supporting components, which the user is expected to provide an enclosure for if not purchasing the pre-wired option
- Pre-Wired PID Control: 4 zone temperature PID cabinet. The user needs to wire in power plugs and k-probes to this unit after routing the wires on the movement system
What you have to setup:
- Mounting MDPE10 particle extruder to CNC or robotic arm
- Wiring in temperature heat zones, K-probe, and heater PID loops
- Wiring system into CNC or robotic arm controller
Hopper feed/pellet loading - MDMCU addon option
- Provide 25 Watts of 24VDC power and a minimum of 1800 Watts of 1-phase: 200~255 VAC @ 50/60 Hz ±5% power.
