Robotic 3D Printing. Made Practical. Up and Running Same Day.
The new MDAC1 Gen2 was developed with ABB Robotics to make robotic 3D printing easier to adopt, more productive, affordable, and simpler to expand. By optimizing both the hardware platform and user experience, we created a robotic additive manufacturing solution that removes many of the traditional barriers to entry.
Instead of spending months integrating components, configuring robotics, and managing custom engineering projects, you are up and printing same day. You can focus on designing, learning, prototyping, and producing repeatable parts. Faster deployment, simplified operation, and a lower total system cost help accelerate your return on investment from day one.
More Capability. Less Complexity.
The MDAC1 Gen2 combines the advantages of our collaborative robots with the simplicity of a fully integrated, turnkey 3D printing platform.
Move to Bigger Parts
Move beyond desktop-sized limitations with build volumes up to 1m², enabling larger prototypes, tooling, molds, fixtures, and functional parts.
Enjoy Smarter Motion
The ABB six-axis robot provides greater freedom than three-axis systems, enabling advanced toolpaths, multi-planar printing for advanced part features, and reduced support structures.
Get Faster Adoption
The hardware, software, and workflow have already been integrated and optimized, reducing setup time and shortening the path from installation to production.
Depend on its Reliability
Built around ABB’s proven collaborative robotics platform and Massive Dimension’s additive manufacturing expertise, the MDAC1 delivers dependable performance backed by industry-leading support.
Start Printing Faster. With Confidence.
Many robotic additive manufacturing systems begin with a robot and develop into a custom engineering project.
The MDAC1 Gen2 avoids that your additive manufacturing systems develop into a custom engineering project.
Our MDAC1 platform is delivered as a complete, commissioned and integrated solution designed specifically for additive manufacturing. The engineering work has already been done. The workflows have already been validated. The software has already been configured for you.
This means less time spent integrating technology and more time creating value.
Whether you are launching an additive manufacturing program, expanding a makerspace, developing research capabilities, or exploring production applications, the MDAC1 provides a practical path into industrial robotic manufacturing.
Key Benefits
- Low total system cost
- Fast deployment
- Intuitive operation
- No implementation risk
- Start-up support and guides at your fingertips
- Technical support available
What’s Included
True Turnkey, Out-of-the-Box Operation
Every MDAC1 Gen2 system includes:
- ABB GoFa collaborative robot
- Massive Dimension filament extrusion system
- Heated build platform
- Integrated process cabinet
- System integration and commissioning
- Massive Dimension technical support
Everything you need to start printing with confidence from day one.
A Platform That Grows With You
The MDAC1 Gen2 was designed as a scalable platform, allowing organizations to expand capabilities as their applications grow.

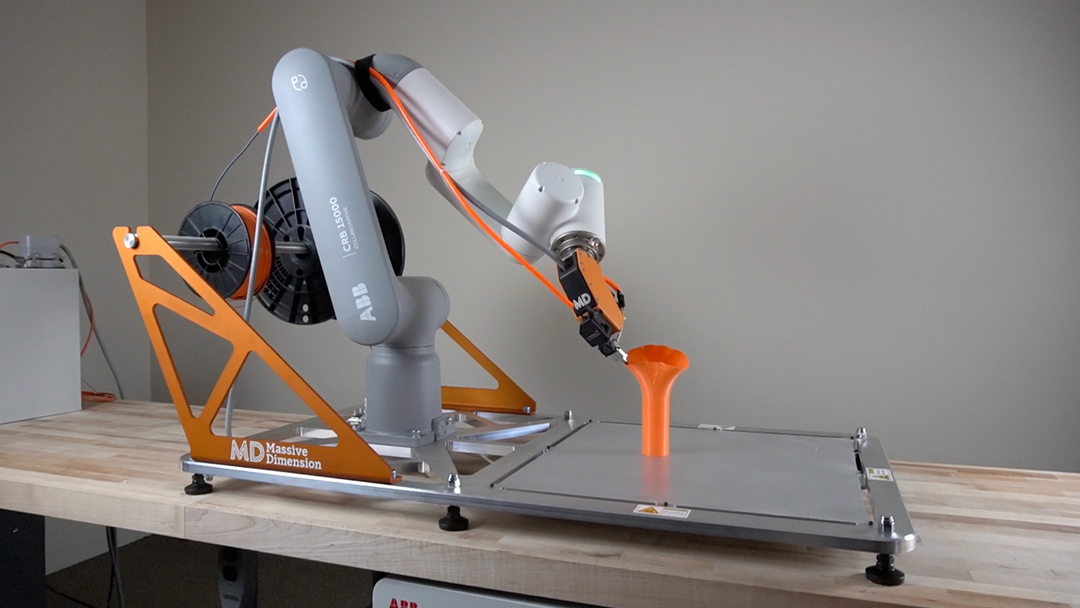

MDAC1 Gen2
Compact robotic additive manufacturing platform powered by the ABB GoFa 5 collaborative robot.
MDAC1 Gen2 L
Expanded build area up to 1m² while maintaining the simplicity and accessibility of the ABB GoFa 5 platform.

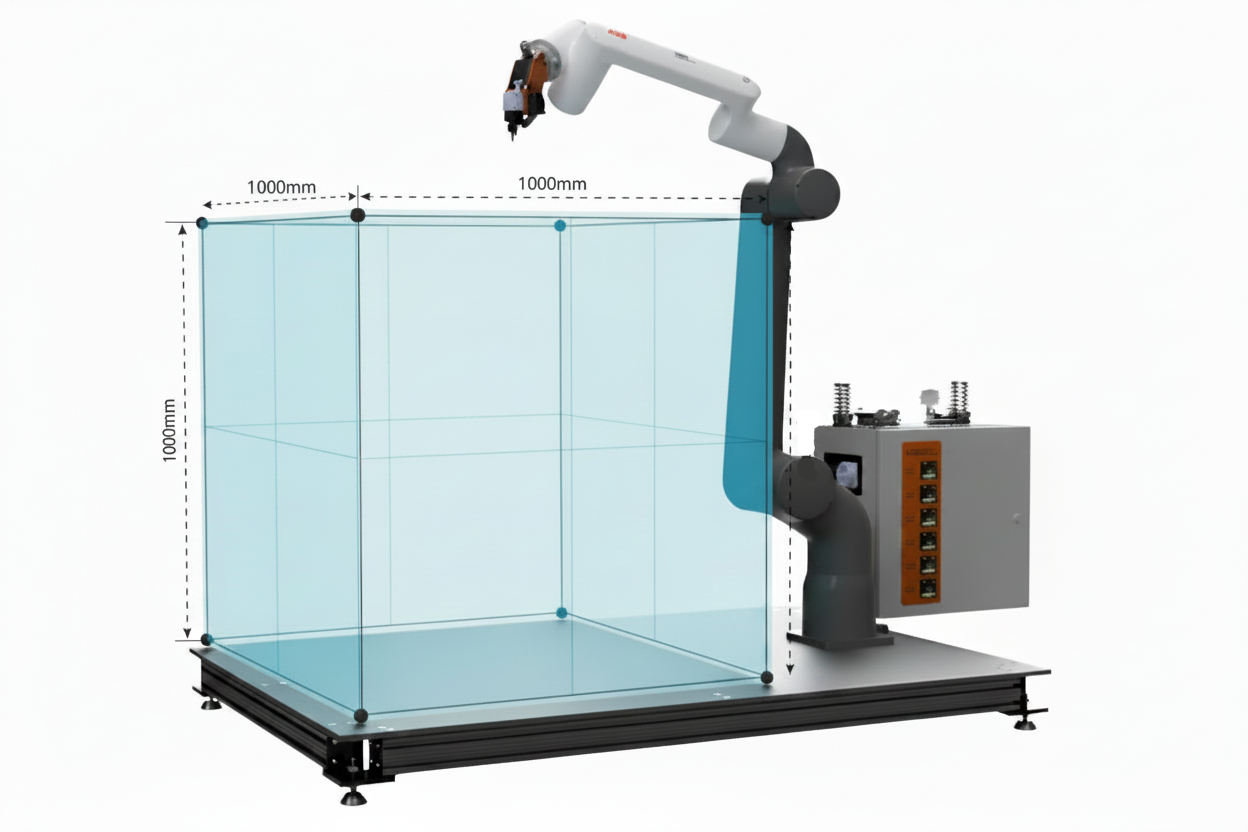

MDAC1 Gen2 XL (Coming Soon)
Built around the ABB GoFa 10 with a 1m² build platform and optional pellet extrusion capabilities for larger-scale and higher-throughput applications.
From education and research to product development and manufacturing, the MDAC1 platform grows alongside your ambitions.
Developed by Leaders in Additive Manufacturing
The MDAC1 Gen2 is the result of a direct collaboration between ABB Robotics and Massive Dimension.
Massive Dimension and ABB bring decades years of expertise developing large-format additive manufacturing systems and workflows. Together, we created a robotic 3D printing platform, combining proven collaborative robotics, streamlined deployment, and an accessible user experience into a single turnkey solution.
Specifications
| Print platform | Filament / 1.75mm or 2.85mm |
| Motion system | 6-axis ABB GoFa CRB 15000 |
| Payload | 5kg |
| Hotend temperature | 500°C max |
| Build surface temperature | 110°C max |
| Build volume | 0.55 × 0.55 × 0.50m, up to 1.0 x 1.0 x 0.95m |
| Nozzle size range | 0.4mm – 1.2mm |
| Path accuracy | 0.03mm |
| Print methods | Non-planar, multi-planar, angled |
| Power input | 120VAC for cobot, 208VAC for heated build surface |
| Configuration | Optimized turn-key cell |
| Price | Starting at $49,995 |
Material compatibility
The MDAC1-GoFa is compatible with any 1.75mm or 2.5mm filament. The 500°C hotend rating supports a wide range of engineering-grade materials including PLA, PETG, ABS, ASA, PC, Nylon, TPU, and high-performance composites.
Slicing software (sold separately)
If you’re coming from a desktop or prosumer 3D printer, you’re used to slicing software being free or bundled, like Bambu Slicer, PrusaSlicer, Cura. Industrial robotic additive manufacturing works differently. The MDAC1 requires a dedicated robotic slicing platform to generate toolpaths, and that software is licensed separately directly from the software provider.
Robotic slicing software handles 6-axis motion planning, collision avoidance, non-planar toolpath generation, and direct robot programming. That capability doesn’t come bundled because we prefer to give our customers the freedom to choose the software platform that best fits them. Of course, we'd happy to advise you on the benefits of different software options.
The MDAC1 is compatible with the following platforms, all available directly from Massive Dimension:
Adaxis AdaOne
A locally installed robotic slicing platform with native ABB code output, full simulation, and support for non-planar and multi-axis toolpaths. Available as an annual seat license from Massive Dimension.
Aibuild CAM
An AI-powered LFAM software platform purpose-built for robotic and gantry-based additive manufacturing. Handles toolpath generation for polymer extrusion across planar, non-planar, and multi-axis strategies, with built-in process analytics and cloud access. Trusted by manufacturers including Ford and Boeing.
ABB RobotStudio 3D Printing PowerPac
ABB’s own offline programming and simulation environment with a dedicated additive manufacturing module. Translates standard G-code into ABB robot commands automatically. Available as an annual license from Massive Dimension.
Contact us at contact@massivedimension.com with questions about software compatibility or licensing.
Ordering and lead time
The MDAC1 platforms can be ordered directly online, and feel free to contact us for any additional information you require. Simply use the contact form on top and bottom of this page to speak to one experts.
In any case, after checkout, a member of the Massive Dimension team will contact you within one business day to review your order, discuss lead time, and coordinate delivery and installation logistics.
Shipping terms: Delivered at Place (DAP). Massive Dimension arranges and prepays shipping to your specified delivery location. Payment is invoiced prior to shipment. Customer is responsible for applicable import duties, taxes, and customs clearance upon arrival.
Do you have any further questions? Please contact us at contact@massivedimension.com
Frequently asked questions
Can I really buy this online?
Yes. The MDAC1 Gen2 is available for direct purchase. After checkout, our team contacts you within one business day to confirm lead time and coordinate delivery and installation. You are not buying a box that ships the next day, you are placing an order for a turn-key system that our team will commission and support.
What is the lead time?
Lead times vary based on component availability and your location. Our team will confirm current lead time within one business day of your order. If lead time is longer than two weeks at the time of your order, we will specify that clearly before confirming.
Is installation included?
Yes. Turn-key commissioning and operator onboarding by the Massive Dimension team is included in the $49,995 price. We coordinate delivery, system setup before shipment, and initial unboxing. Training is available from Massive Dimension and your selected software partner.
Where does Massive Dimension ship?
We ship worldwide on Delivered at Place (DAP) terms. Massive Dimension arranges and prepays freight to your specified delivery location and invoices payment prior to shipment. You are responsible for import duties, taxes, and customs clearance upon arrival.
How is the MDAC1 Gen2 different from previous MDAC1 systems?
The MDAC1 Gen2 was developed in direct collaboration with ABB Robotics as a purpose-optimized configuration for additive manufacturing. The result is a leaner bill of materials, faster deployment, and a publicly listed price — all without removing capability from the platform.
Can I order with a pellet extruder instead of the filament head?
The MDAC1 Gen2 is configured with the MD Filament Head. Pellet extrusion capability is available in the MDAC1 Gen2 XL (coming soon). Contact us about the broader MDAC1 and MDPE product lines for pellet-based applications today.
What are the MDAC1 Gen2 L and XL?
The MDAC1 Gen2 L expands the build area up to 1m² while using the same ABB GoFa 5 platform. The MDAC1 Gen2 XL (coming soon) is built around the larger ABB GoFa 10 with optional pellet extrusion for higher-throughput applications. Both are part of the same MDAC1 platform — you can grow into them without changing ecosystems.
Does this use the ABB Ultra Accuracy feature?
The GoFa CRB 15000 is Ultra Accuracy capable, delivering path accuracy to 0.03mm. If your application requires Ultra Accuracy, contact us to confirm the configuration before ordering.
Do you accept purchase orders?
Yes. Purchase orders can be submitted to contact@massivedimension.com. If you need Massive Dimension registered as a vendor in your system, send vendor forms and W9 requests to the same address.
What does my facility need before delivery?
Our team will walk through facility requirements — floor space, power, ventilation — during the post-order coordination call. Delivery will not be scheduled until your site is confirmed ready.
