Turnkey Robotic Additive Manufacturing Cells

Massive Dimension and ABB Robotics bring you Additive Manufacturing Cells

Massive Dimension offers turnkey, customizable robotic printing cells for large format additive manufacturing applications. These specific cells feature six-axis industrial robotic arms from ABB, a worldwide leader in the field. These robots have excellent accuracy and repeatability figures throughout the full range of their reach, and when coupled with the ABB 3D Printing Powerpac software the printing workflow becomes comprehensible even for newcomers to additive manufacturing. Translate G-code from your preferred slicer into commands for your printing cell, run full process simulations, and upload prints to your controller all within ABB RobotStudio, taking the guesswork out of proving out prints or prototyping.

Turnkey Cells

Massive Dimension and ABB bring you Robotic 3D Cells

The robotic printing cell is configured to meet the demands of your printing production, increasing your output and providing safety and reliability for your process.

Massive Dimension

Extruder Heads

Our pellet extruders offer increased output for larger layer heights and widths, dramatically reducing overall print time on larger parts. MD extruders are compatible with a huge range of thermoplastic pellets, which offer significant economical advantages over utilizing filament feedstock.

ABB

Robotic Arms

Featuring six-axis industrial robotic arms from ABB, a worldwide leader in the field. These robots have excellent accuracy and repeatability figures throughout the full range of their reach.

Massive Dimension Extruders

The extrusion equipment and supporting accessories from Massive Dimension are custom-tailored for robotic printing and integrated into these AM cells. Each cell includes all items needed for large format printing, from the heated build plate to automated material conveyance. Cells can be customized with different process packages to fit your specific printing needs, and our engineering team can work with you to arrive at the configuration most complementary to your application.

Endless Possibilities

Let your imagination be your guide

Extruder Heads

Massive Dimension Polymer Dispensing Heads

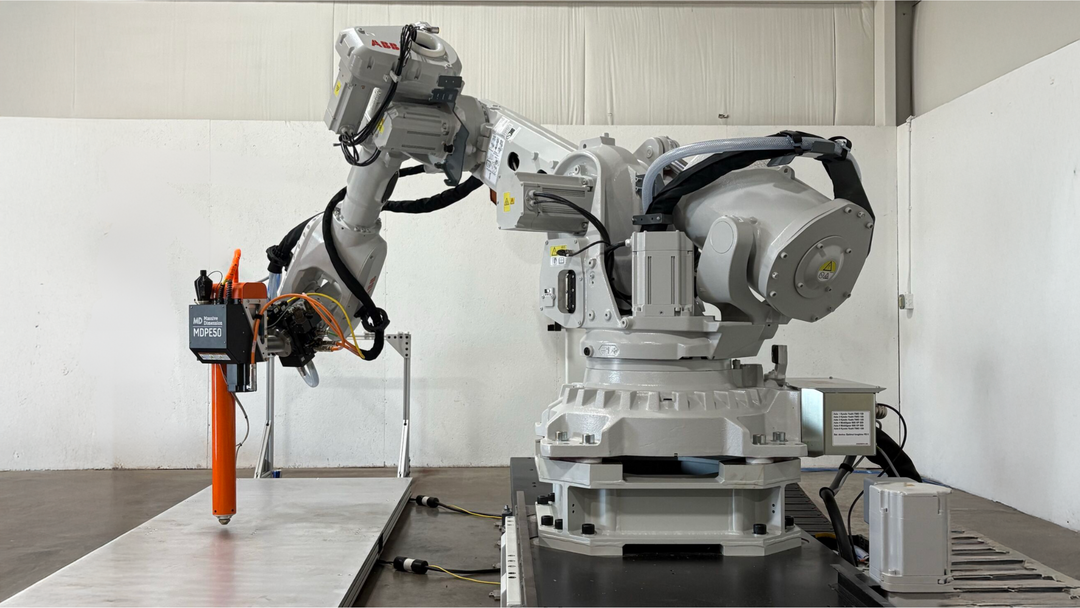

Robotic arm ABB 4400 Cell 3D

Robotic Arms

ABB IRB 2600 or IRB 4400 Robotic Arms

Material Conveyance

Massive Dimension Material Conveyance unit

Pellet Hopper

Massive Dimension Bulk Pellet Storage Bin

Why choose Massive Dimension's Robotic 3D printing Cells?

A crucial aspect of the concept of the turnkey AM cell is education. Available for purchase are training services from Massive Dimension and ABB to get you acquainted with your printer, ensuring your operators are well-equipped to begin producing parts without significant downtime or undue print failures. These training services include an overview course on all aspects of the printing process, including slicer software, polymer extrusion, RAPID programming, extruder maintenance, and more!

Our partnership with ABB supplements our own extensive knowledge of extrusion technology built from over a decade in the industry, guaranteeing that you will have access to world-class support for products that meet the demands of large format printing. Are you ready to print the next big thing?

FEATURES

ABB Robots - IRB 2600 or IRB 4400, custom options available

Massive Dimension Extruders - MDPH2 or MDPE10

Material Storage, Material Conveyance, and Heated Build Surface

Safety Panels and Access Controls

Software Included: RobotStudio, 3D Printing Powerpac

BENEFITS

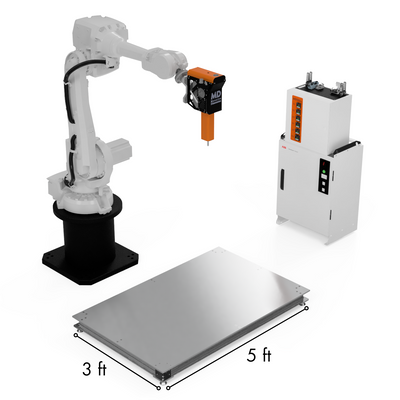

Large format printing - 3ft wide x 5ft long x 5ft tall

Fast build rates - 2lbs, 10lbs, or 50lbs per hour output - depending on MD extruder

Cell setups to fit your application

Intuitive software is easy to learn

Pellet feedstock is economical and features a broader range of thermoplastics vs. filament

MDAC2  - MDPH2 // ABB 2600 Additive Cell

MDAC2 - MDPH2 // ABB 2600 Additive Cell


This robotic printing cell features our MDPH2 and the ABB 2600 robot. Great for research, development, and short-run production. The setup is turn-key, simply plug in power and compressed air, and this cell is ready to print. The cell has a 26in x 52in build surface in its standard configuration and can also be customized with a rotary positioner if desired. This cell includes all the necessary supporting systems to feed pellets and control heaters zones and comes built on a base pallet for easy movement within your facility.
