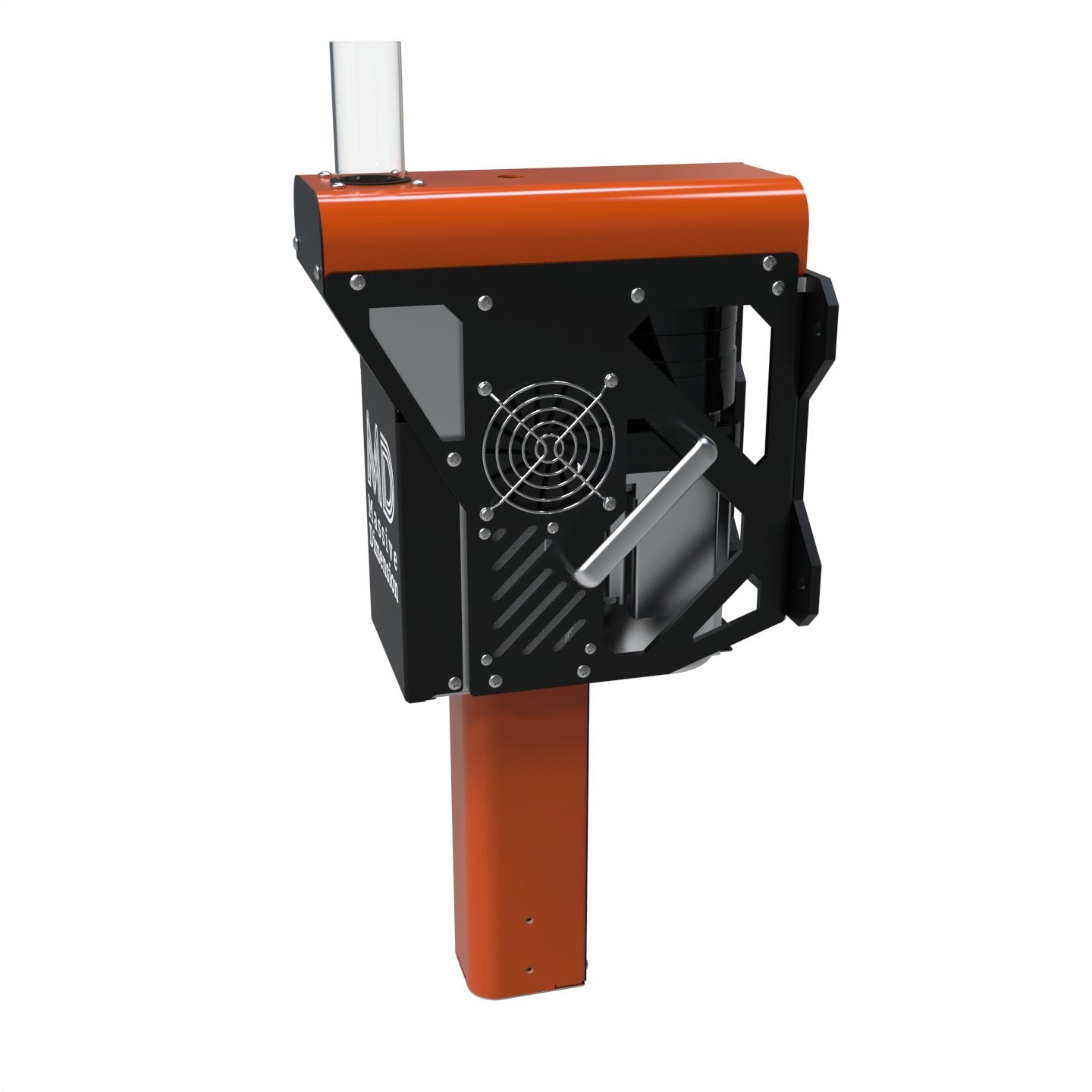

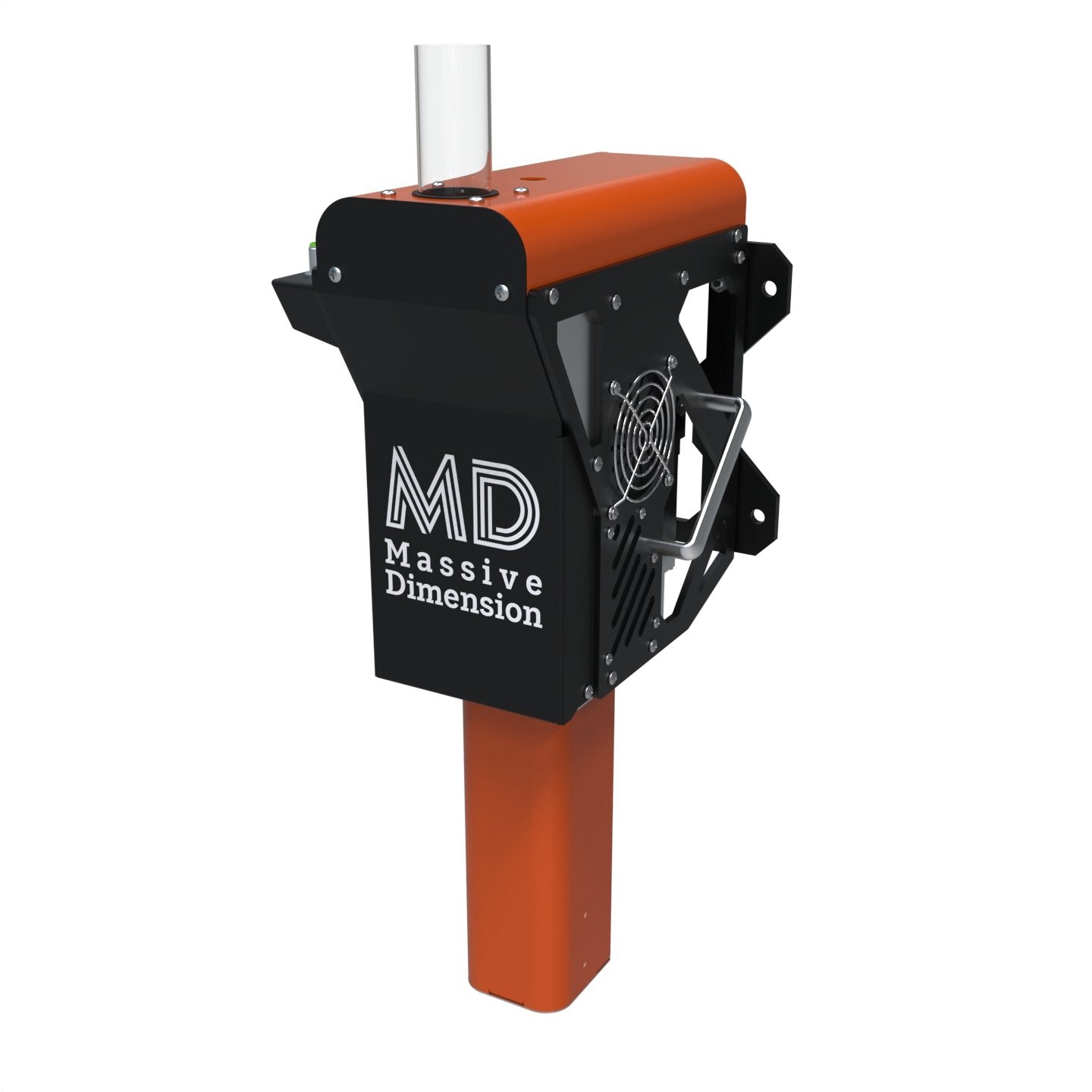

MDPE10 - Massive Dimension Direct Print Particle Extruder

  • Sale
  • $12,949.00


Launching Soon! - Signup for launching notifications

The MDPE10 is the newest direct print extruder from Massive Dimension. This MDPE10 extruder outputs 10lbs per hour, five times more material than the MDPH2 extruder. This higher output allows for shorter print times and wider wall thicknesses. The MDPE10 also has two more heat zones, for a total of 3 zones, and a 24:1 L/D ratio removable extruder screw. The zones and longer screw melt, pressurize, and output polymer more consistently during large format 3D printing.






Specifications

  • Temperature Max: 450°C - 1000 Watt Total Heating Power
  • 240VAC Single Phase
  • 3 Heat Zones
  • High Performance, High Pressure Screw
  • High Power Motor
  • 10 pound per hour output
  • Wide Range of Materials - ABS, PLA, HIPS, PETG, more materials being tested
  • Material Input Size - Up to 1/8in diameter, with an angle of repose less than 30°
  • Low Weight ~ 40lbs (18kg)

Whats in the box

  • MDPE10 Pellet Head
  • 4 Nozzles
  • 10ft Power and Control Wire
  • Motor Power and Control Wire
  • Motor Driver
  • Stand Alone Temperature Control Unit

What you have to setup

  • Mounting MDPE10 particle extruder to CNC or robotic arm
  • Wiring in temperature Control Unit
  • Wiring system into CNC or robotic arm controller
  • Hopper feed / pellet loading
