Our screws are designed and tested by our engineers to meet a variety of customer needs. These screws are for use in the MDPE10 standard or industrial series extruder.

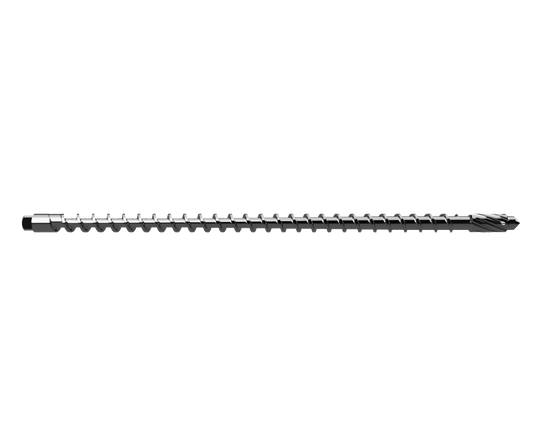

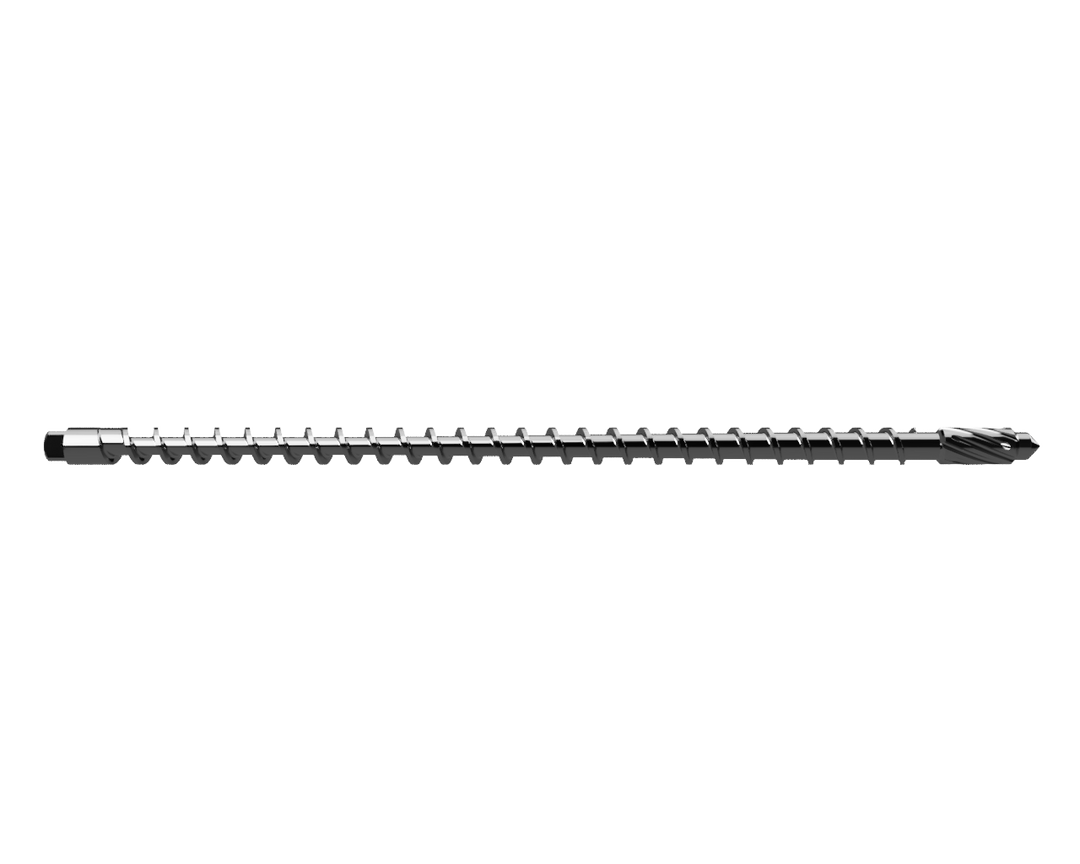

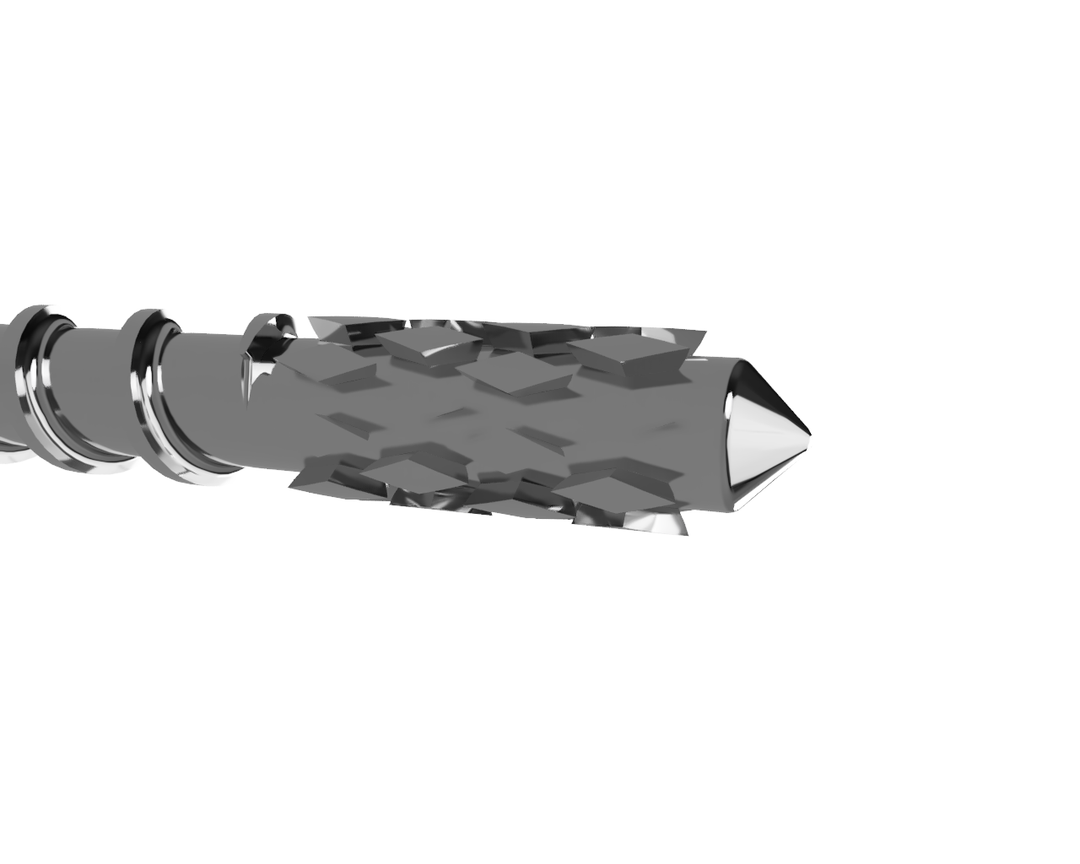

Standard Screw - Mixer Element (EX6-625-ME): Our stock general purpose screw profile with an additional mixer element for mixing and compounding extrusion applications. Works well for mixing additives, fillers, and co-polymer formulations.
Standard Screw (EX6-625): Our standard screw is designed for most PLA and ABS grades typically used for 3D printing, as well as other polymers with a similar melt viscosity. Our standard screw works best with pellets and granules in the 2-5mm size range.
Standard Profile for High Abrasion Materials (EX6-625-N): Standard screw with a nitrated surface for high abrasion material extrusion.

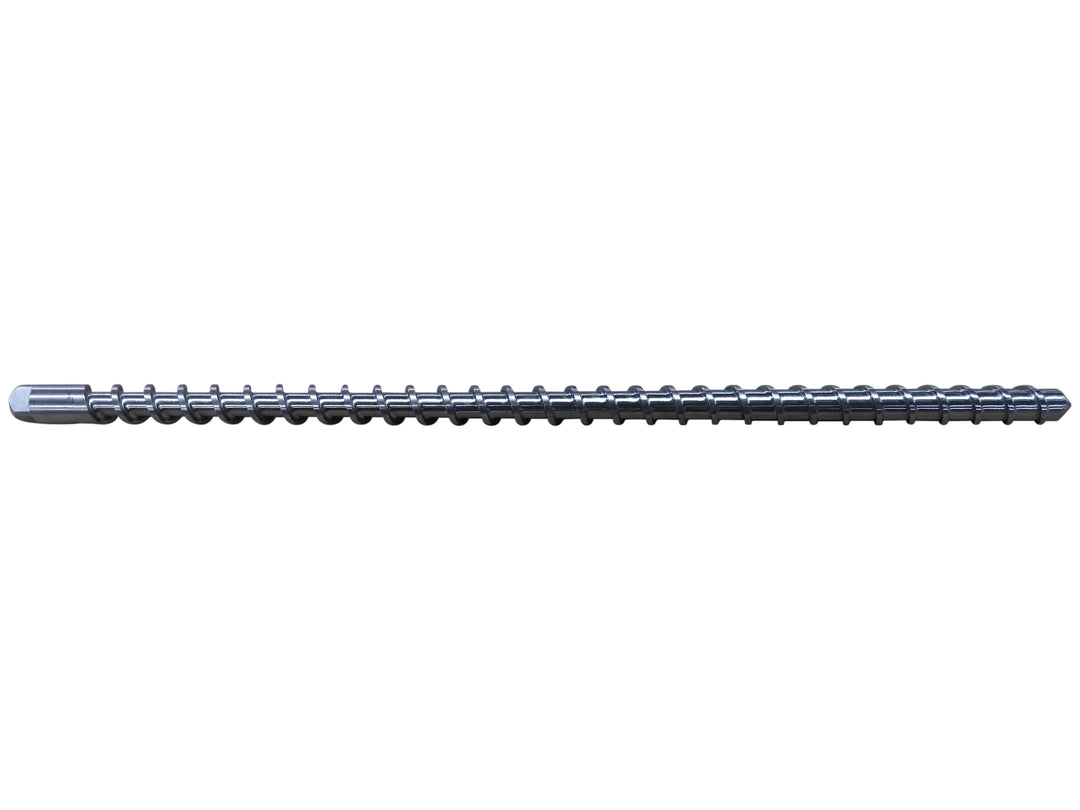

Standard Higher Shear (EX6-120-C2): This screw is the same spec as our Standard Screw, only shallower (high shear). This design can improve performance when using powders and smaller pellets (3mm and under).

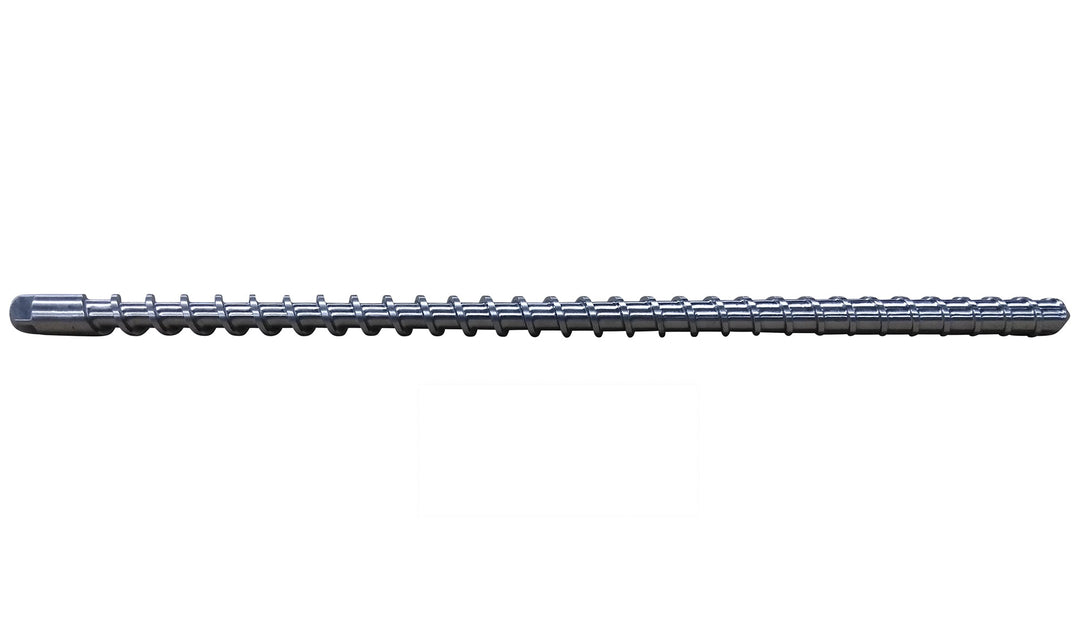

High Compression Screw (EX6-120-C3): Best for pellets/granules in the 3mm and under range. This screw offers a higher compression than our Standard Screw.

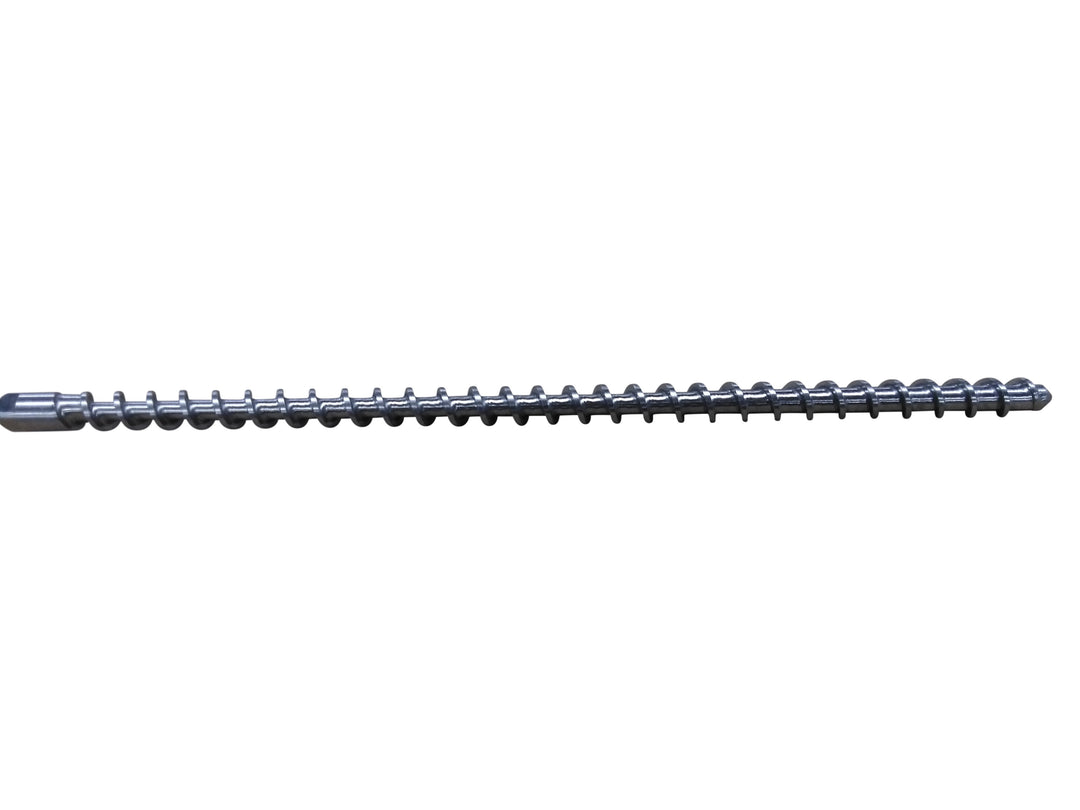

Low Compression Screw (EX6-145-C125): This screw can improve performance with higher melt viscosity polymers which require less compression. Pellets and granules in the 2-4mm size range work best with this screw.

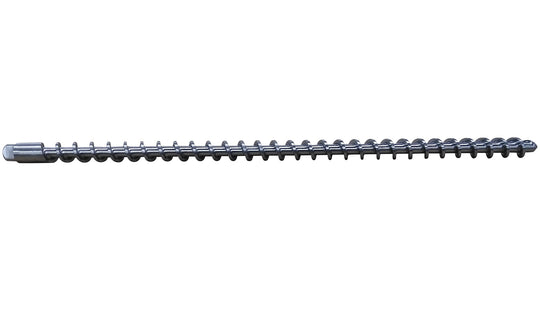

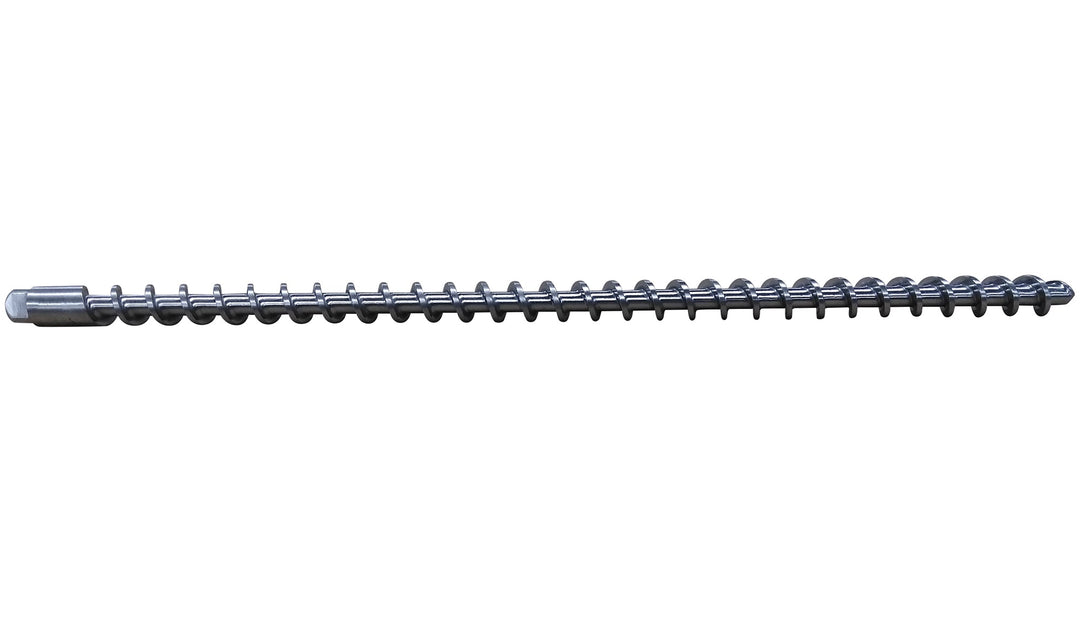

No Compression Screw (EX6-145-C0): This screw can improve performance with higher melt viscosity polymers which require no compression. Pellets and granules in the 2-4mm size range work best with this screw.

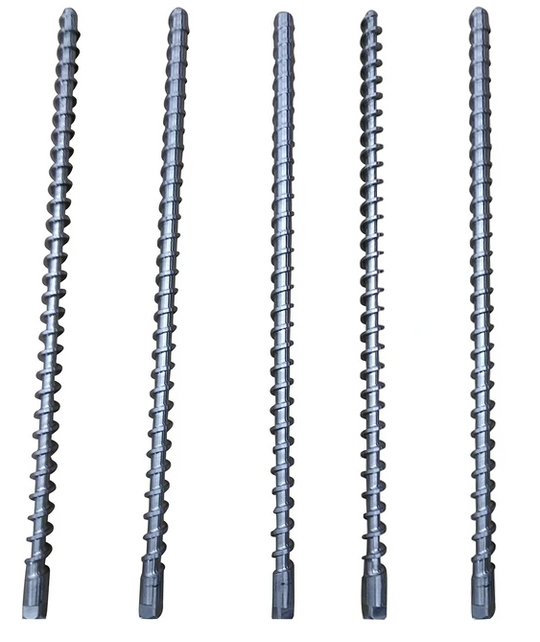

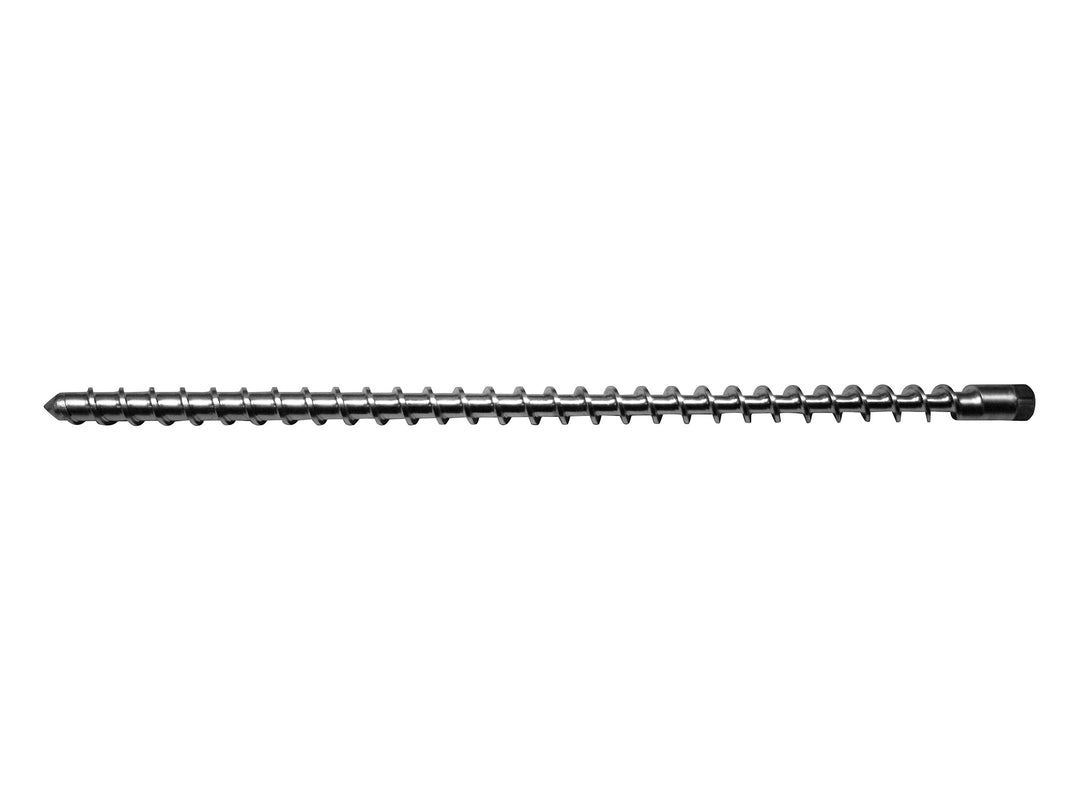

Full Screw Bundle (Qty 5): This bundle includes the 5 (except the chrome screw) screws at a discount price.
The MDPE10 extruder can output up to 10 lbs of material per hour. Its impressive specs coupled with its extreme flexibility make it a highly capable contender for advanced printing in additive manufacturing.
There is a very distinctive design language and quality of construction across all Massive Dimension parts. This combined with the fact that all these components are compatible with each other is a big selling point.
